ASPN 08/10
For small batches and trials
- Usable space
- Ø 800 mm × 1,000 mm
- Plasma
- 55 / 75 kW
- Gas controllers
- 4 / 8
EQUIPMENT RANGE · PLASMA NITRIDING
ASPN: active-screen plasma nitriding.
Superior surfaces and tool life: uniform, low-distortion treatment for industrial batches.
NOVA VacoraASPN plasma nitriding enquire
Active-screen plasma nitriding in a bell furnace: plasma is generated at the active screen, while parts carry only a low bias voltage. This provides uniform temperature without arcing or distortion and allows mixed batches without complex masking. Four standard sizes, with custom sizes on request.
- 4
- Standard sizes, Ø 800 to Ø 1,500 mm
- 150
- kW maximum plasma power
- NADCAP
- Optional aerospace package
Who it is for and why
Who it is for.
Heat-treatment companies, tool and mould makers, automotive and aerospace suppliers, medical technology: stamping, forging and extrusion tools, die-casting and plastics moulds, taps, and components such as valves, gears and crankshafts.
Why ASPN plasma nitriding.
- Uniform temperature throughout the batch, no hollow-cathode effect
- Low cathode current on parts: no arcing, no distortion
- Nitriding with and without a compound layer, nitrocarburising, post-oxidation
- Mixed batches and simple loading, less operator dependence
- Low gas and electricity consumption, low operating costs
Who it is for.
Heat-treatment companies, tool and mould makers, automotive and aerospace suppliers, medical technology: stamping, forging and extrusion tools, die-casting and plastics moulds, taps, and components such as valves, gears and crankshafts.
Why ASPN plasma nitriding.
- Uniform temperature throughout the batch, no hollow-cathode effect
- Low cathode current on parts: no arcing, no distortion
- Nitriding with and without a compound layer, nitrocarburising, post-oxidation
- Mixed batches and simple loading, less operator dependence
- Low gas and electricity consumption, low operating costs
Four standard sizes.
The designation gives usable diameter and height in decimetres. Custom sizes and technologies to customer requirements.
ASPN 08/10For small batches and trials
- Usable space
- Ø 800 mm × 1,000 mm
- Plasma
- 55 / 75 kW
- Gas controllers
- 4 / 8
ASPN 10/12The standard size
- Usable space
- Ø 1,000 mm × 1,200 mm
- Plasma
- 75 / 90 kW
- Gas controllers
- 4 / 8
ASPN 12/15For long tools
- Usable space
- Ø 1,200 mm × 1,500 mm
- Plasma
- 90 / 120 kW
- Gas controllers
- 4 / 8
ASPN 15/18Large system
- Usable space
- Ø 1,500 mm × 1,800 mm
- Plasma
- 110 / 150 kW
- Gas controllers
- 4 / 8
Technical specifications
| Feature | ASPN 08/10 | ASPN 10/12 | ASPN 12/15 | ASPN 15/18 |
|---|---|---|---|---|
| Usable diameter | Ø 800 mm | Ø 1,000 mm | Ø 1,200 mm | Ø 1,500 mm |
| Usable height | 1,000 mm | 1,200 mm | 1,500 mm | 1,800 mm |
| Height with raised bell | 4,800 mm | 5,000 mm | 5,300 mm | 5,800 mm |
| Plasma generator, standard / max. | 55 / 75 kW | 75 / 90 kW | 90 / 120 kW | 110 / 150 kW |
| Gas flow controllers, standard / max. | 4 / 8 | 4 / 8 | 4 / 8 | 4 / 8 |
| Camera viewing ports, top / side | up to 3 | up to 3 | up to 3 | up to 3 |
Example ASPN 10/12 configuration: dry backing pump and booster, six gas flow controllers, pulsed plasma supply 60 + 15 kW, four type-K temperature channels, Siemens SIMATIC S7-1500F, vacuum system meeting NADCAP requirements.
ASPN 10/12
The standard size
- Usable space
- Ø 1,000 mm × 1,200 mm
- Plasma
- 75 / 90 kW
- Gas controllers
- 4 / 8
ASPN 12/15
For long tools
- Usable space
- Ø 1,200 mm × 1,500 mm
- Plasma
- 90 / 120 kW
- Gas controllers
- 4 / 8
ASPN 15/18
Large system
- Usable space
- Ø 1,500 mm × 1,800 mm
- Plasma
- 110 / 150 kW
- Gas controllers
- 4 / 8
| Feature | ASPN 08/10 | ASPN 10/12 | ASPN 12/15 | ASPN 15/18 |
|---|---|---|---|---|
| Usable diameter | Ø 800 mm | Ø 1,000 mm | Ø 1,200 mm | Ø 1,500 mm |
| Usable height | 1,000 mm | 1,200 mm | 1,500 mm | 1,800 mm |
| Height with raised bell | 4,800 mm | 5,000 mm | 5,300 mm | 5,800 mm |
| Plasma generator, standard / max. | 55 / 75 kW | 75 / 90 kW | 90 / 120 kW | 110 / 150 kW |
| Gas flow controllers, standard / max. | 4 / 8 | 4 / 8 | 4 / 8 | 4 / 8 |
| Camera viewing ports, top / side | up to 3 | up to 3 | up to 3 | up to 3 |
Example ASPN 10/12 configuration: dry backing pump and booster, six gas flow controllers, pulsed plasma supply 60 + 15 kW, four type-K temperature channels, Siemens SIMATIC S7-1500F, vacuum system meeting NADCAP requirements.
Options for all sizes.
- Post-oxidation
- HF pulse generator (single-furnace configuration)
- Aerospace NADCAP package
- Central anode
- Full or half tandem with two loading positions
- SCADA visualisation with trends, alarm and batch logs, user levels
Options for all sizes.
- Post-oxidation
- HF pulse generator (single-furnace configuration)
- Aerospace NADCAP package
- Central anode
- Full or half tandem with two loading positions
- SCADA visualisation with trends, alarm and batch logs, user levels
Processes and materials.
- Nitriding, nitrocarburising and post-oxidation
- With a compound layer (Fe₄N, ε-Fe₂₋₃(C)N) or without a white layer
- Martensitic and austenitic stainless steels
- Tool steels, case-hardening and heat-treatable steels, cast iron
- Mirror-polished moulds: greater hardness and wear resistance, better release
Processes and materials.
- Nitriding, nitrocarburising and post-oxidation
- With a compound layer (Fe₄N, ε-Fe₂₋₃(C)N) or without a white layer
- Martensitic and austenitic stainless steels
- Tool steels, case-hardening and heat-treatable steels, cast iron
- Mirror-polished moulds: greater hardness and wear resistance, better release
A closer look.
The active screen: where the plasma is generated

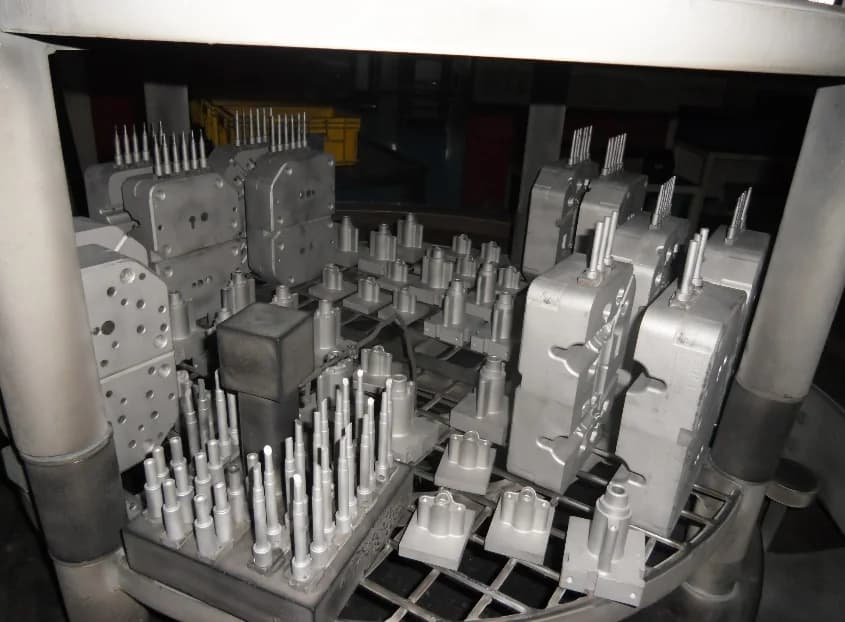

Mixed batch: mould inserts of different sizes

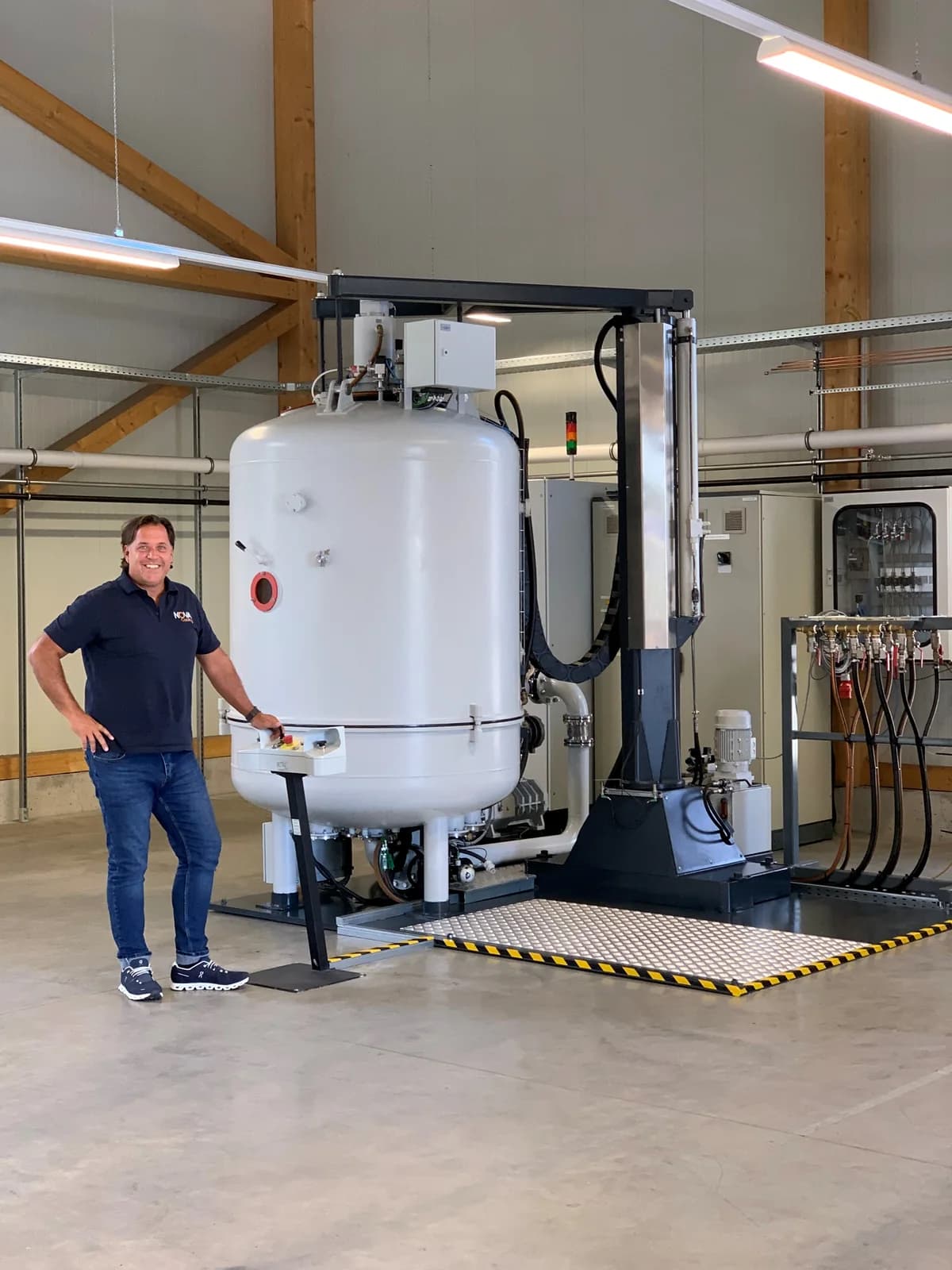

ASPN in production
More product groups.
THE NEXT STEP
ASPN plasma nitriding: Which configuration suits you?
Describe your parts, throughput and process. We will respond with an assessment, with sample coating and an equipment demonstration on request.
