CERTIFICATIONS & QUALITY

Quality you can verify.

Evidence and scope.

Certification

An independent auditor regularly checks that we follow defined, documented procedures, from the enquiry to delivery.

Scope: The locations and activities listed in the respective certificate define its scope.

DQS reference 547583 · ISO 9001:2015

DQS reference 31616952 · Associated with the certification of NOVA Coating Nord.

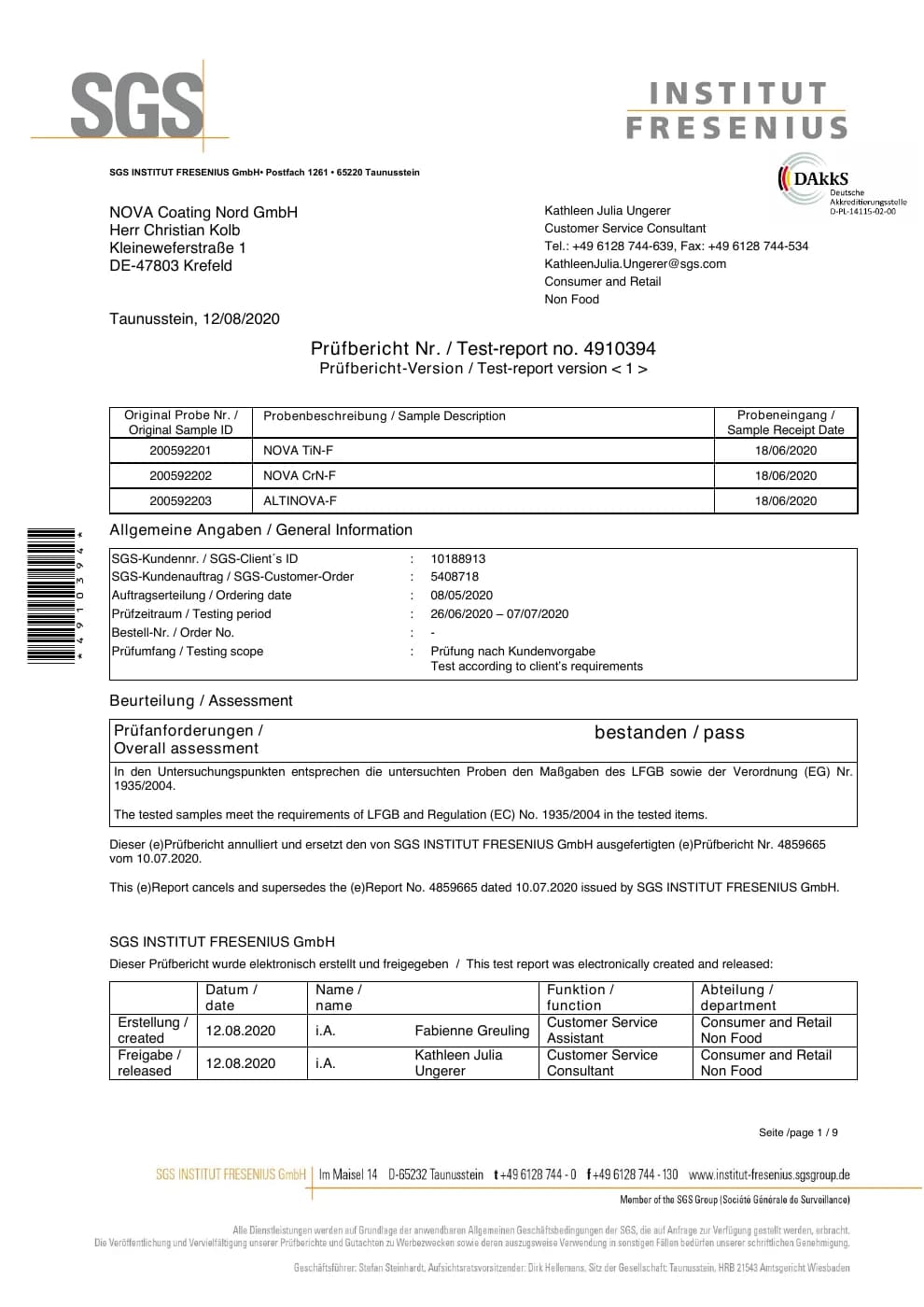

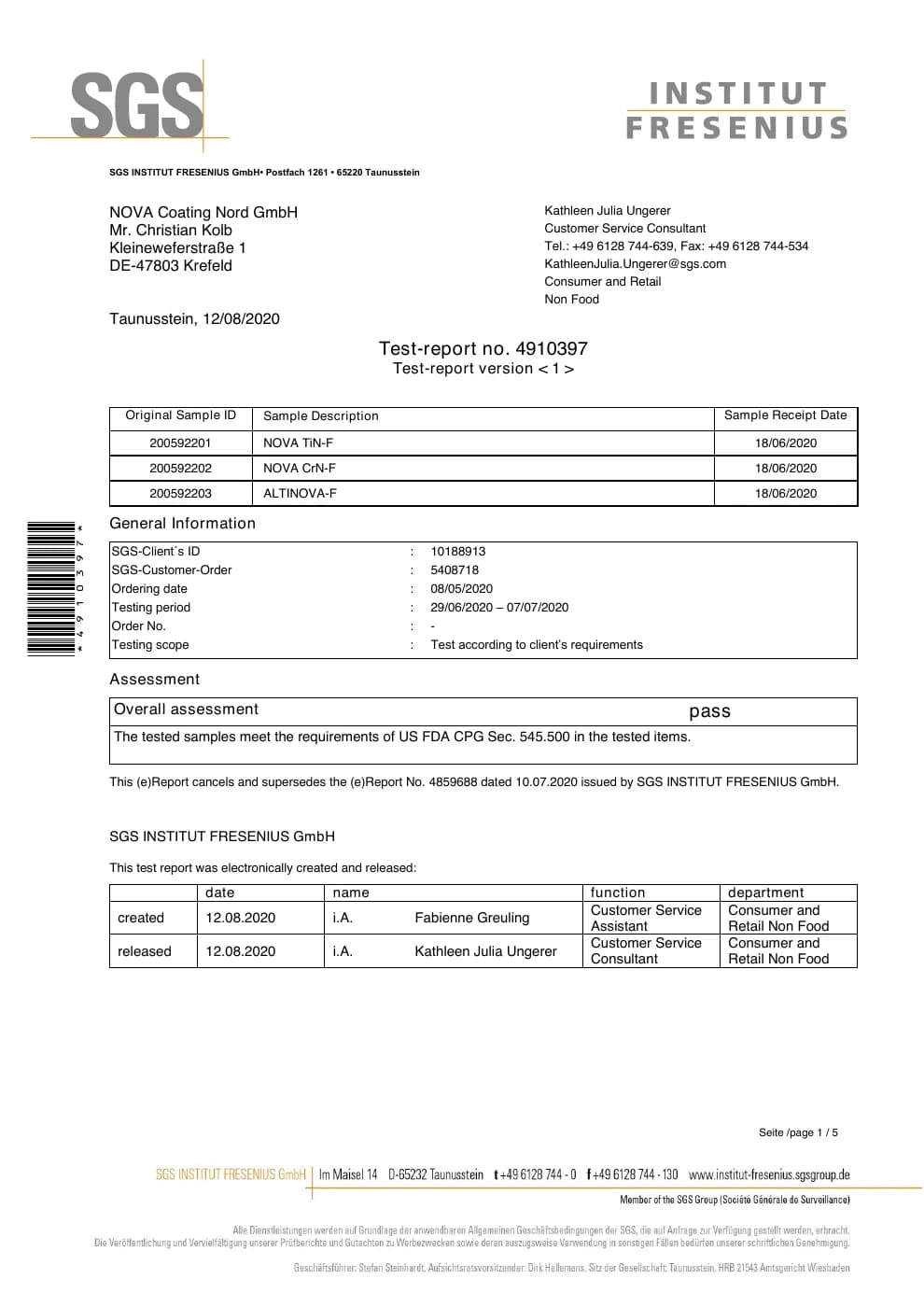

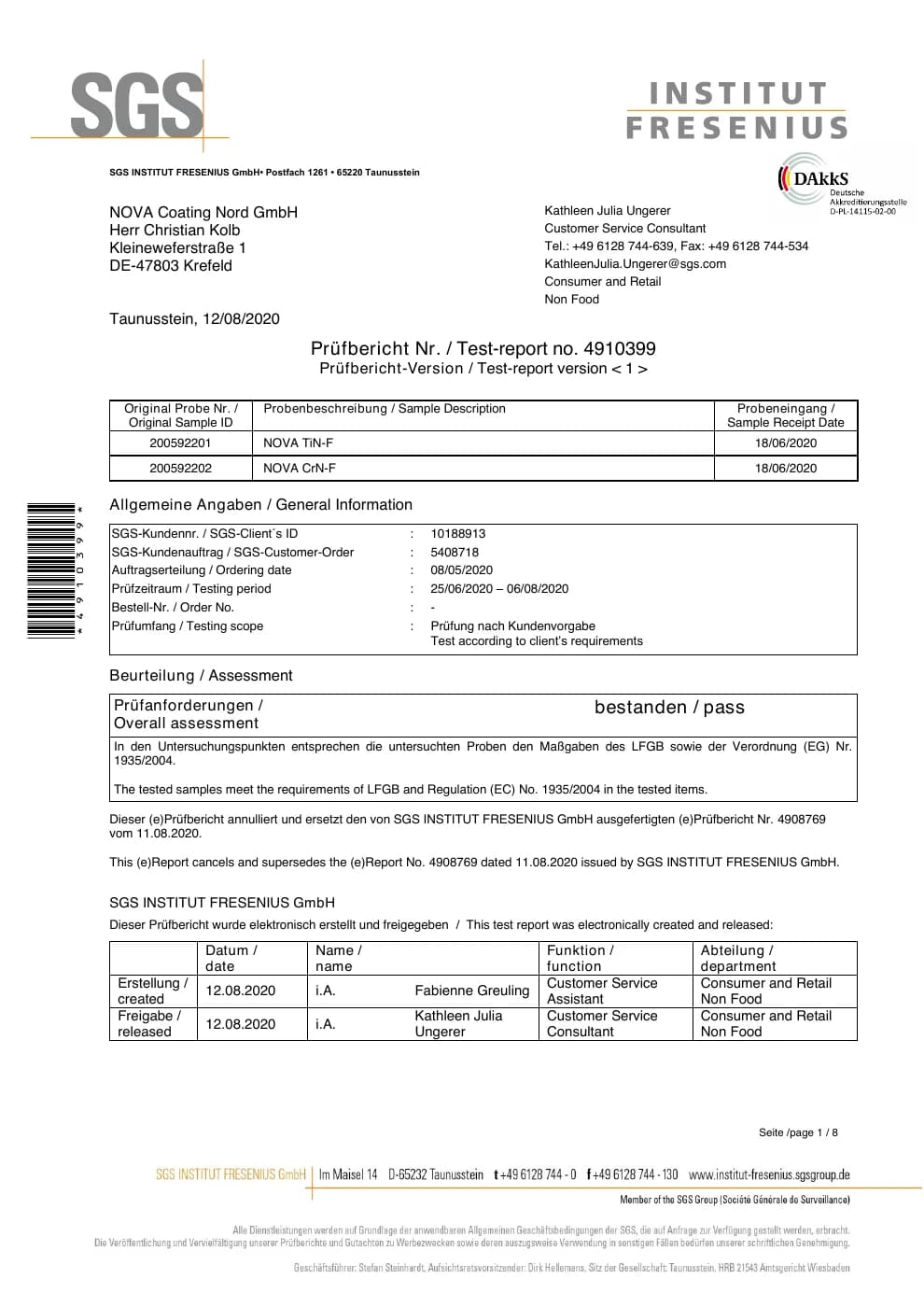

Laboratory testing · 2020

In 2020, NOVA reported successful laboratory testing of three coatings for short-term food contact under German, European and US requirements.

Tested coatings: NOVA TiN-F · ALTINOVA-F · NOVA CrN-FThe statement applies only to the tested samples in short-term contact under the test conditions. Suitability for your application must be assessed separately.

SGS INSTITUT FRESENIUS · 12 August 2020

Each test answers a different question. The method, test location and scope depend on the material, coating and application.

Substrate hardnessRockwell hardness test: The permanent indentation depth indicates the hardness of the substrate. This does not separately determine the hardness of a thin PVD or DLC coating.
Coating thicknessBall cratering: A ball grinds a small crater into the coated surface. The known ball geometry and the dimensions of the visible rings are used to determine the coating thickness at the test location.
Coating adhesionRockwell indentation test: Cracks and delamination around the test indentation are examined under a microscope. The damage pattern is used for a qualitative assessment of coating adhesion.
SurfaceMicroscopy: Magnification reveals surface features and irregularities. It also supports the evaluation of ball-crater thickness measurements and adhesion tests.
ResultsTest report: The agreed tests and their results are documented. We agree the required scope of testing and documentation with you before the order.

THE NEXT STEP

We discuss the appropriate coating, scope of testing and required evidence with you.
