Technical data & application report

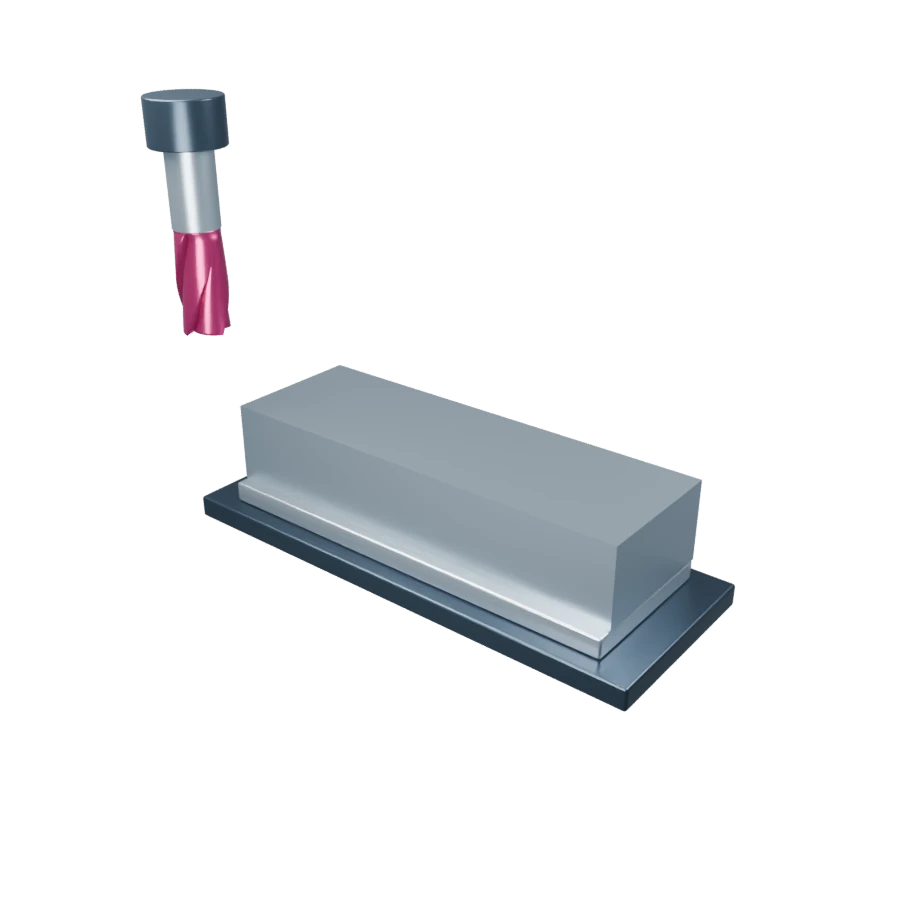

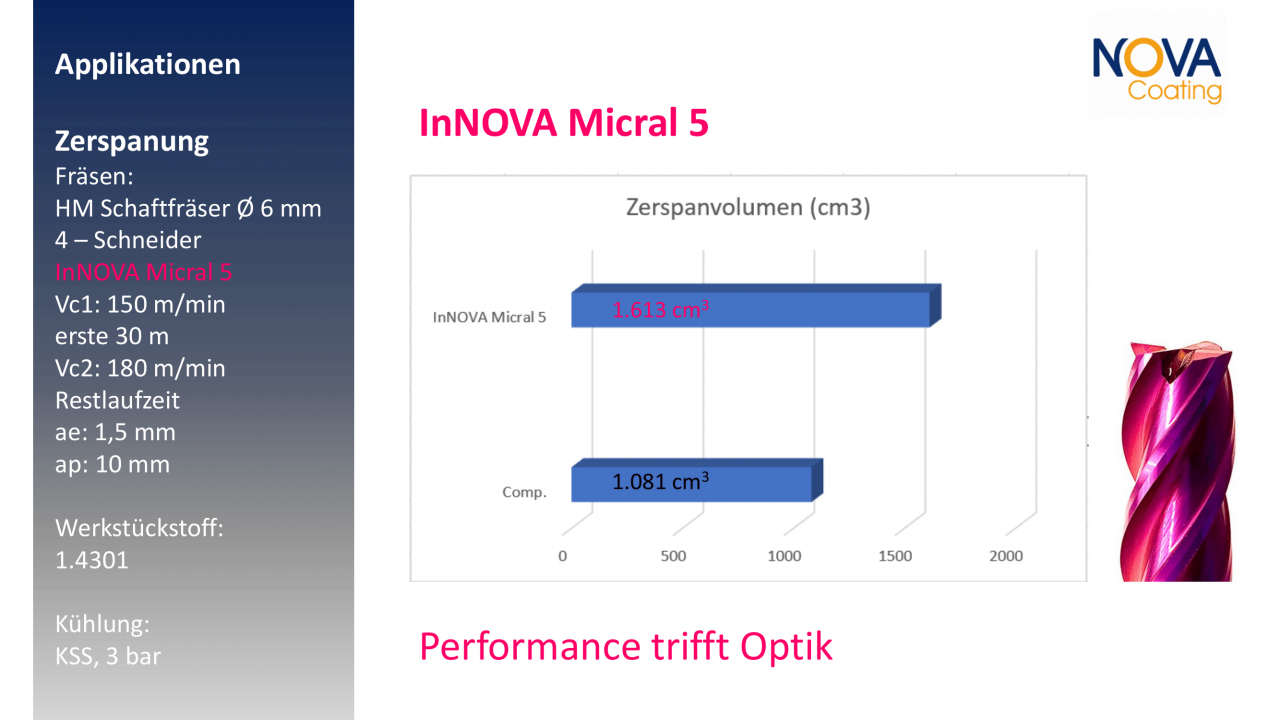

Volume trial: Ø 6 mm, four cutting edges, 1.4301, ae 1.5 mm, ap 10 mm, coolant at 3 bar. 150 m/min for the first 30 m, then 180 m/min. Tool paths and volume models represent cumulative removal schematically; they are not to scale with the cm³ values or a real-time simulation. The separate milling-distance trial is not combined with this comparison.
Results apply to the conditions described in the report.
